Features
- Microprocessor-powered motor controller for controlling up to four sunshade motors
- Standard 3-wire central input
- Direct connection available for four 230VAC motors
- Connection available for group button
- Connection available for four individual buttons
- 10 different operating modes can be set, incl. inching mode and intelligent decentralised operation
- Motor run time/tilting time can be individually set
- Control via serial bus communication protocol - RS485 Modbus RTU
MC P4 Modbus MS/ TP Series
MC P4 Modbus MS / TP | Dry Contact Motor Control for 4 Motor with programmable functions with individual, group and central control I Modbus MS/ TPO RS485 I Application: Shutters & Shades I 230V I SMT Housing
MC P4 VRS Modbus MS / TP | Dry Contact Motor Control for 4 Motor with programmable functions with individual, group and central control I Modbus MS/ TPO RS485 I Application: Shutters & Shades I 230V I incl. VRS Plug-in Module I SMT Housing
MC P4 Modbus MS / TP Complete | Dry Contact Motor Control for 4 Motor with programmable functions with individual, group and central control I Modbus MS/ TPO RS485 I Application: Shutters & Shades I 230V I SMT Housing and cable gland with integrated strain relief
MC P4 Modbus MS / TP VRS Complete | Dry Contact Motor Control for 4 Motor with programmable functions with individual, group and central control I Modbus MS/ TPO RS485 I Application: Shutters & Shades I 230V I incl. VRS Plug-in Module I SMT Housing and cable gland with integrated strain relief
-
Description:

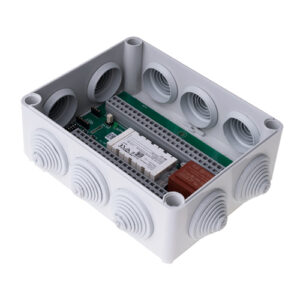

MC P4 Modbus MS/ TP
-
Item Numbers:
01077440, 01077516, 01077525, 01077530
-
Product Group:
Conventional Motor Controls
Product Variants
| Item Number | Description |
|---|---|
| 01077440 | MC P4 Modbus MS / TP |
| 01077516 | MC P4 Modbus MS / TP VRS |
| 01077525 | MC P4 Modbus MS / TP Complete (in housing, Grommets are already fitted) |
| 01077530 | MC P4 Modbus MS / TP VRS Complete (in housing, Grommets are already fitted) |
